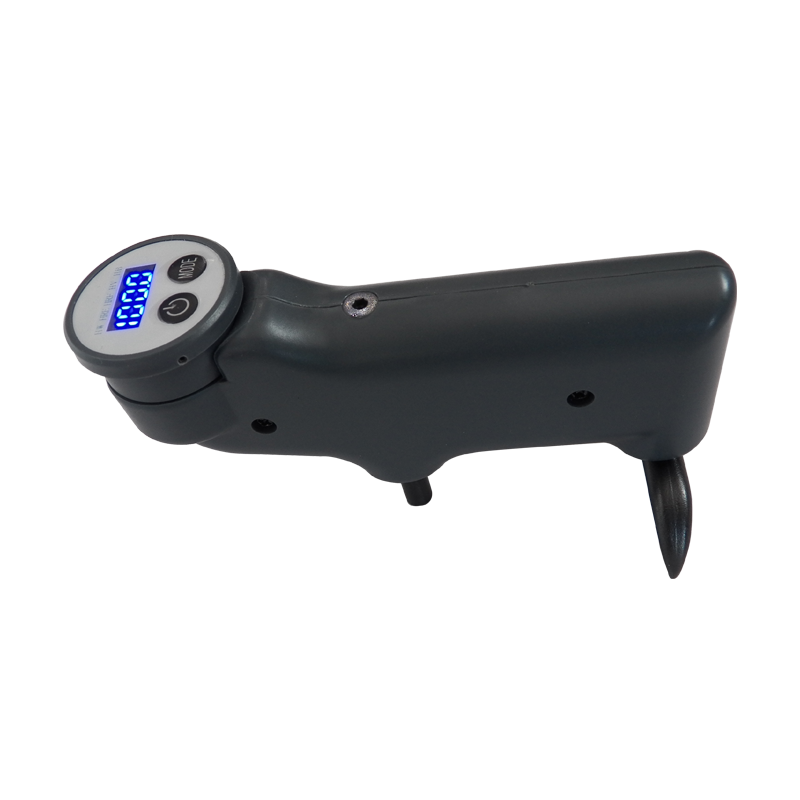

MITECH 934-1 Barcol impressor, based on mechanical pressure principle, its intelligent design making it possible to test the hardness on site conveniently and quickly. Mitech 934-1 Series Barcol Impressor with Single Bracket is the latest product of indentation hardness tester. Equipped with rotating bracket for locating, it can effectively improve the stability of the device, thus improve the accuracy. Digital display can offer with better measuring experience. The calibration can be achieved by simply pressing one key without dismantling. The device is so portable that user can operate with one single hand.It is widely used in aluminum processing and fiberglass and other hard plastic manufacturing industry.It can meet most of the needs during production processing hardness test in hard plastic manufacturing industry.It is a necessary professional testing equipment to improve the production rate and cost savings.

l Aluminum sheet

l Thick-walled aluminum

l Aluminum wheels

l Aluminum alloy castings, forgings, die castings

l Aluminum doors and windows, curtain walls, fire ladder, glass fiber reinforced plastic bathroom products, hull, storage

  tank, artificial marble after installation

l The depth of workpiece to be measured must be over 1.5mm;

l Sample surface coating will seriously affect the measurement accuracy, with sandpaper or solvent to remove the coating

  after the hardness measurement;

l The coating on the surface will affect the accuracy ,user need to get rid of it before measuring;

  The instrument should be used in environments with strong vibrations, damp and corrosive gases

l Portable and easy to operate with single hand, small size,light weight ,can do fast hardness test of workpiece;

l Easy to learn, no high-skill skills of the operation requirements, the human operation of the measurement results less

  impact, very suitable for the production site for rapid hardness testing of materials;

l Can do fast NDT test on site of sale or work without sampling;

l Compared with Webster hardness tester,there is no limits of workpiece size,can do the test directly on the surface;

l Wide measurement range,capable of hardness test for pure aluminum and aluminum alloy products ;

l Widely used in aluminum processing and fiberglass and other hard plastic manufacturing industry.Its advanced type can

  also measure soft plastic , metal and leather;

l Equipped with rotating bracket for locating, it can effectively improve the stability of the device, thus improve the accuracy;

l Digital display screen,making the best measuring experience;

l Can meet the standard of GB/T3854-2005(PRC) and ASTM B648-2000(USA) .
