MRT2000 Digital х-γ Radiation?Dosimeter

Brand:

Mitech

Model:

Measuring range:

Dose rate:0.01~200.00Sv/h ,Dose:0~10Sv

Resolution Accuracy:

≥350CPS/?μSv/h

Communication storage:

Working time:

Main unit weight:

1.2Kg

Dimensions:

42*23*15cm

Package dimensions:

45*28*11.5cm

Total weight:

2kg

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

Product

  • Overview
  • Graphic
  • Technical
  • Configuration
  • Related

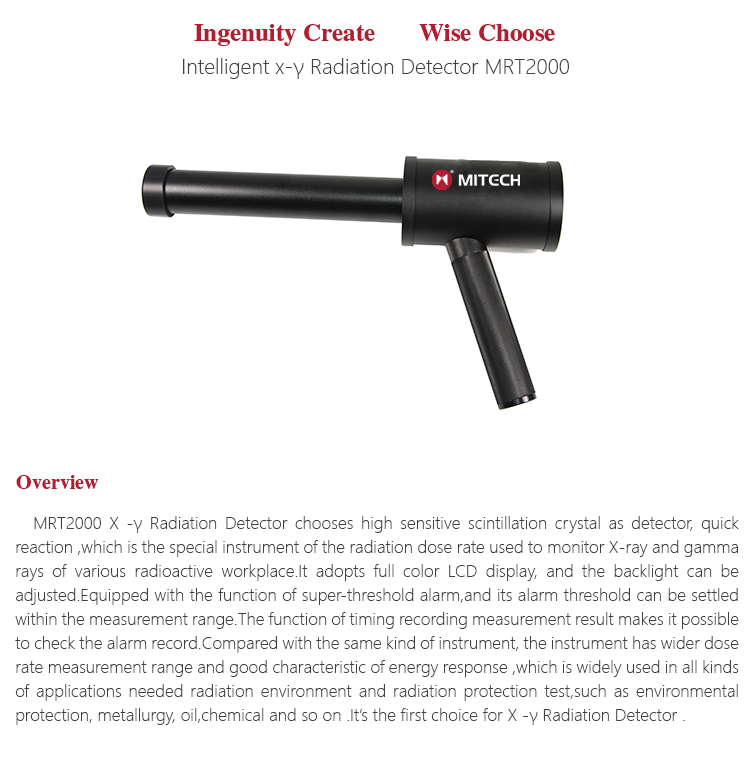

  • Product Overview

    MRT2000 X -γ Radiation Detector chooses high sensitive scintillation crystal as detector, quick reaction ,which is the special instrument of the radiation dose rate used to monitor X-ray and gamma rays of various radioactive workplace.It adopts full color LCD display, and the backlight can be adjusted.Equipped with the function of super-threshold alarm,and its alarm threshold can be setted within the measurement range.The function of timing recording measurement result makes it possible to check the alarm record.Compared with the same kind of instrument, the instrument has wider dose rate measurement range and good characteristic of energy response ,which is widely used in all kinds of applications needed radiation environment and radiation protection test,such as environmental protection, metallurgy, oil,chemical and so on .It’s the first choice for X -γ Radiation Detector .




    Function & application

    MRT2000 X -γRadiation Detector is widely used in all kinds of applications needed radiation environment and radiation protection test,such as environmental protection, metallurgy, oil,chemical and so on

    Working Principle

    Using sodium iodide and photomultiplier tube principle

    Working Conditions

    Working temperature- 10℃~+50℃

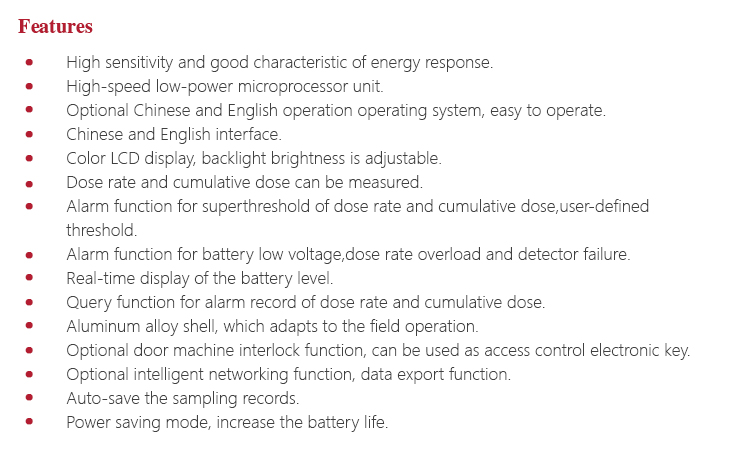

    Instrument Features

    NaI scintillating crystal detector with high-sensitivity and fast response
    Detecting time between 1~600 second
    International standard unit of uGy/h (environment) and uSv/h (protection)
    Large-size lattice LCD display with backlight function
    Real-time show battery capacity and alarm against low battery
    Light touch control panel
    Dose rate alarm with double alarm threshold
    Real-time clock with backup battery
    Data storage and check
    Programmable sound, light and vibration alarm

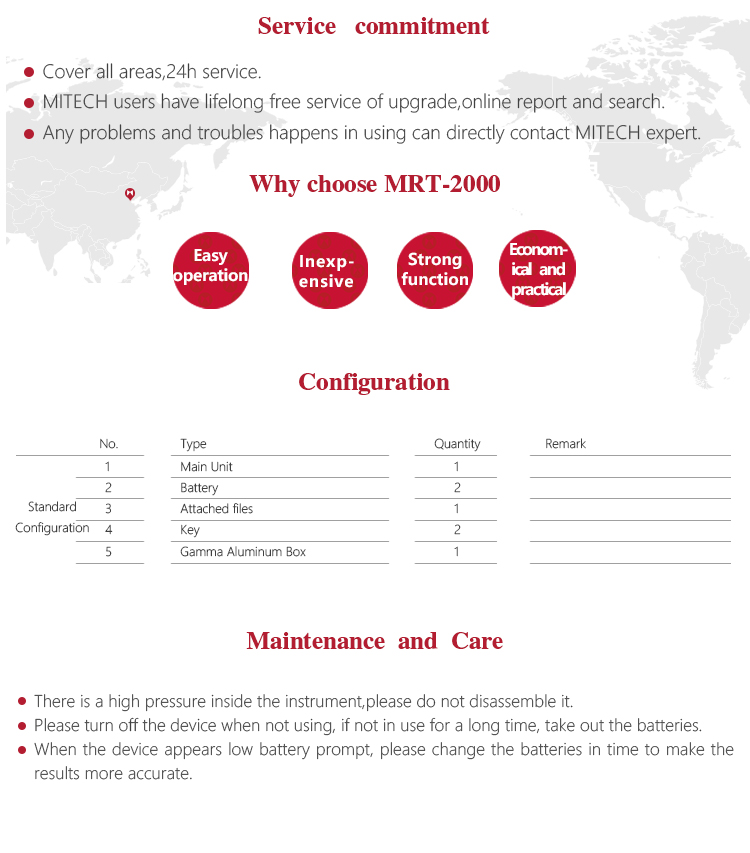

    Operating Method and Attentions

    Instrument Maintenance

    High pressure inside the instrument,forbidden to remove!
    When not in use, turn off the instrument and remove the batteries to avoid over discharge of the batteries, result in instrument damage.

  • Detector Dia30x25mm,?NaI?scintillating?crystal
    Measurement range Dose rate:0.01~200.00Sv/h ,Dose:0~10Sv
    Accuracy ≥350CPS/?μSv/h
    Energy Response 48Kev~3Mev≤±30%?(based?on?137Cs)
    Relative Deviation ≤±10%
    Power two?standard?No.1?battery
    Dimensions 420*180*88(mm)
    Weight 1.30Kg
×
